LEAF SPRING US-1067: 1_3/4” wide, 4 Leaf, 13_1/4″ (25_1/4″) approx: 2,250 lbs.

Description

Generic Trailer Spring: 1_3/4” wide, 4 Leaf, 13_1/4″ (25_1/4″) approx: 2,250 lbs.
Repair or replace your trailer’s suspension with our double-eye leaf spring, also known as an eye-by-eye trailer spring, designed for reliable performance and optimum load carrying capacity on light duty trailers including RVs, campers, utility trailers, boat trailers, and equipment haulers. This is a common style of leaf spring that features an “eye” at both ends of the spring with nylon or brass bushings. This spring mounts either above or below the trailer axle and secures to standard hangers and shackles for a smooth, controlled ride. Built from heat-treated spring steel, each trailer spring is engineered to handle loads while reducing bounce, excessive friction, and sway on the roughest of roads. Whether you’re replacing worn springs, upgrading your suspension, or building a new trailer, these springs offer a perfect combination of strength, stability, and durability. These are available in a variety of leaf counts and weight ratings to match your axle capacity. Our double eye leaf springs are ideal for single, tandem, or triple axle trailer configurations.

US-1067 Double-Eye Leaf Spring: 4-Leaf, 13¼” (25¼”), 2,250 lb Capacity

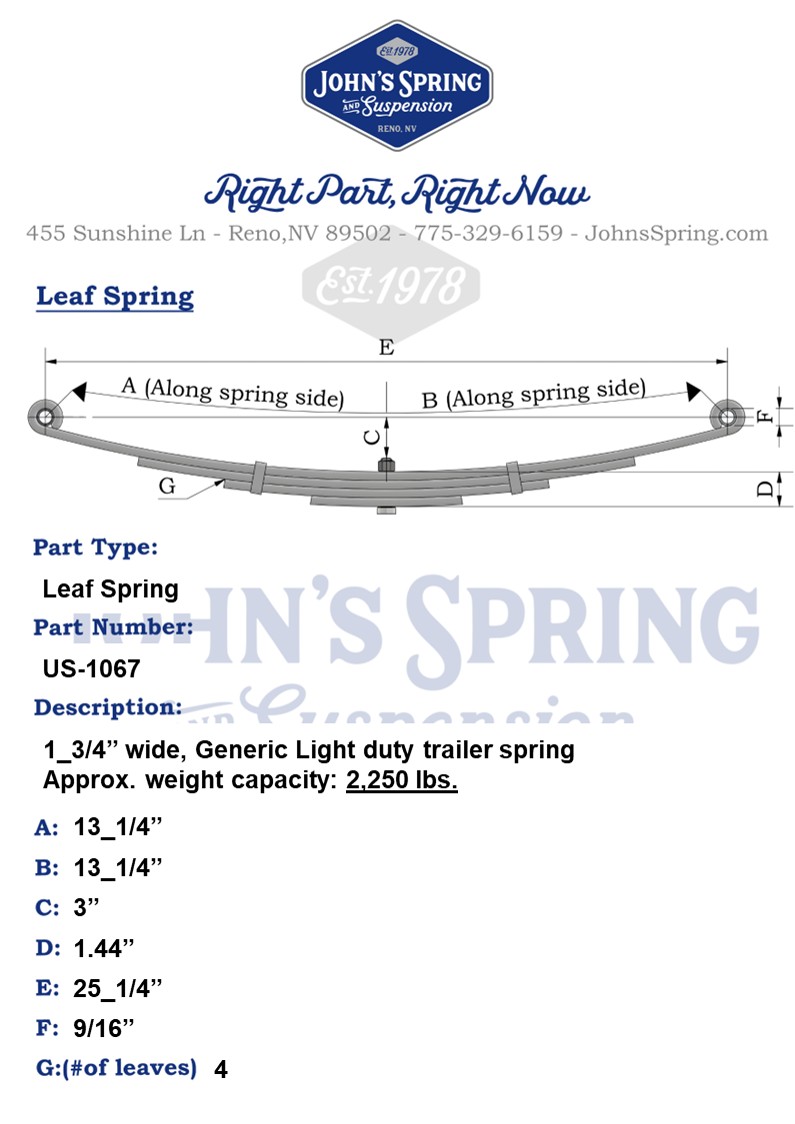

LEAF SPRING US-1067 is 1¾ inches wide, has four leaves, measures approximately 25¼ inches long, and is rated for approximately 2,250 lbs. Its 9/16-inch spring eye diameter and 3-inch arc height are also important measurements to check against your existing spring before ordering.

What Is a Double-Eye (Eye-by-Eye) Trailer Spring?

A double-eye spring has an eye at each end. The eyes connect to the trailer’s hangers and shackles through bushings, which may be nylon or brass. Depending on the trailer’s suspension design, the spring can mount above or below the axle. Confirm the mounting setup and measurements before replacing an existing spring.

Heat-Treated Spring Steel Construction

Heat-treated spring steel is designed to flex under load and withstand repeated compression cycles. A properly matched LEAF SPRING US-1067 helps support the trailer and absorb road impacts. Spring condition, load distribution, and the rest of the suspension also affect bounce and sway.

Ideal Trailer Types: RVs, Campers, Boat & Utility Trailers

The approximate 2,250 lb rating may suit:

• RVs and campers with matching spring dimensions and axle requirements.
• Boat trailers carrying loads within the trailer’s rated capacity.
• Utility trailers used to transport equipment or materials.

Check your trailer’s axle rating, fully loaded weight, and existing spring specifications. Trailer suitability depends on the complete suspension setup, not spring capacity alone.

2,250 lb vs. Other 4-Leaf Options

LEAF SPRING US-1067 and US-1044 are both listed as 1¾ inches wide, four-leaf springs measuring approximately 25¼ inches long. Their stated capacities differ: US-1067 is rated for approximately 2,250 lbs, while US-1044 is rated for approximately 1,625 lbs. Match the required rating before choosing between them.

Compatible with Single, Tandem & Triple Axle Configurations

LEAF SPRING US-1067 may be used in single, tandem, or triple axle setups when its dimensions and rating match the trailer’s suspension design. Trailers with multiple axles require springs at each applicable wheel position. If you’re unsure how many to order, contact us with your trailer and axle specifications.
