1_3/4” wide, 5 Leaf, 14″ (26″) approx: 2,500 lbs.
LEAF SPRING US-1071: 1_3/4” wide, 5 Leaf, 14″ (26″) approx: 2,500 lbs.
$54.99
Description
Generic Trailer Spring: 1_3/4” wide, 5 Leaf, 14″ (26″) approx: 2,500 lbs.
Repair or replace your trailer’s suspension with our double-eye leaf spring, also known as an eye-by-eye trailer spring, designed for reliable performance and optimum load carrying capacity on light duty trailers including RVs, campers, utility trailers, boat trailers, and equipment haulers. This is a common style of leaf spring that features an “eye” at both ends of the spring with nylon or brass bushings. This spring mounts either above or below the trailer axle and secures to standard hangers and shackles for a smooth, controlled ride. Built from heat-treated spring steel, each trailer spring is engineered to handle loads while reducing bounce, excessive friction, and sway on the roughest of roads. Whether you’re replacing worn springs, upgrading your suspension, or building a new trailer, these springs offer a perfect combination of strength, stability, and durability. These are available in a variety of leaf counts and weight ratings to match your axle capacity. Our double eye leaf springs are ideal for single, tandem, or triple axle trailer configurations.
US-1071 Double-Eye Leaf Spring: 5-Leaf, 14″ (26″), 2,500 lb Capacity

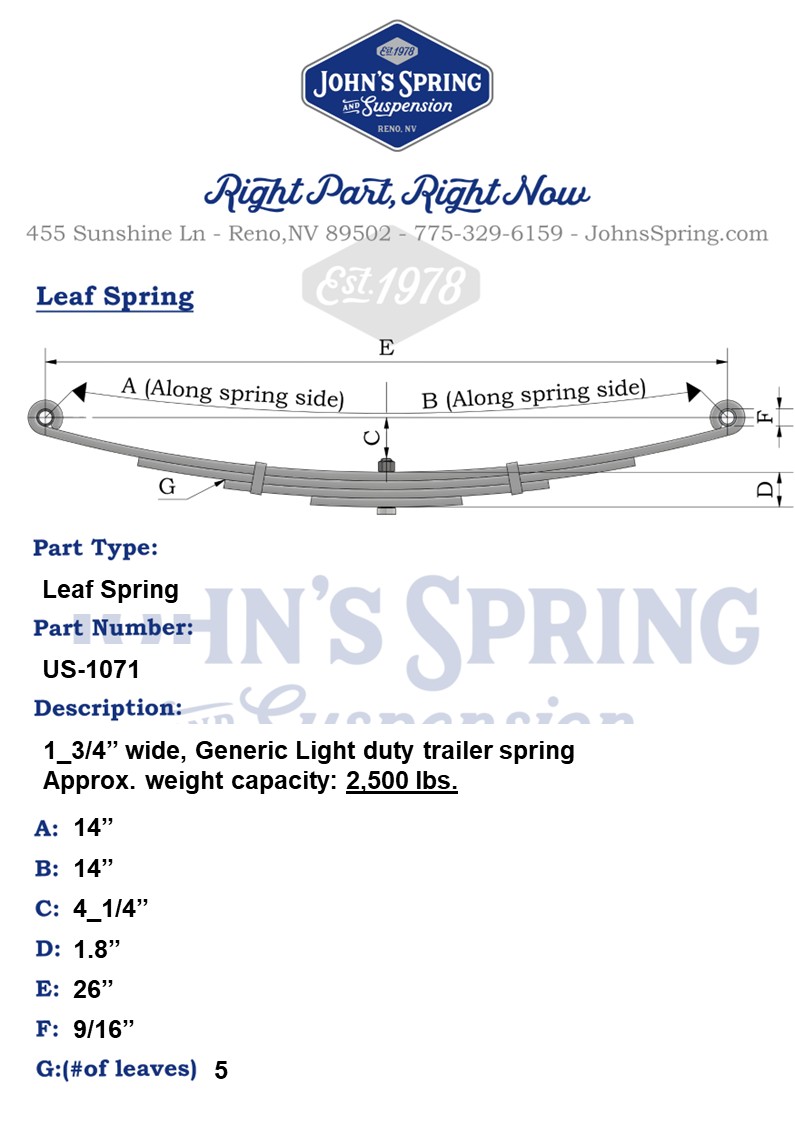

The LEAF SPRING US-1071 is a 1¾-inch-wide, five-leaf trailer spring with an approximate 2,500 lb capacity. It measures 26 inches overall, with 14-inch long and short ends, a 4¼-inch arc height, and a 9/16-inch spring eye opening. We recommend checking every measurement against your existing spring before ordering.
Heat-Treated Spring Steel Built for Durability
A trailer spring must flex through repeated trips while supporting its rated load. If you’re replacing a worn or broken spring, we can help you compare the LEAF SPRING US-1071 with your current setup and confirm the dimensions you need.
Ideal Trailer Types: RVs, Campers, Boat & Utility Trailers
The LEAF SPRING US-1071 may suit an RV, camper, boat trailer, or utility trailer when its measurements and load rating match the trailer’s requirements. Before ordering, check:
- Your existing spring’s width, length, and eye size
- The axle rating and expected loaded weight
- The spring’s fit with your hangers and shackles
Compatible with Single, Tandem & Triple Axle Configurations
The LEAF SPRING US-1071 can be considered for single, tandem, or triple axle trailers when the spring dimensions and capacity match the suspension design. For trailers with multiple axles, we recommend confirming the specifications across the full setup so the replacement fits and supports the intended load.
Additional information
| Weight | 25 lbs |
|---|---|
| Dimensions | 27 × 2 × 5 in |
| Long End Length | |
| Short End Length | |
| Arc Height | |
| Spring Thickness | |
| Length of Spring | |
| Spring Eye ID | |
| Number of Leaves |
