SHACKLE LINK, 2_5/8″

Description

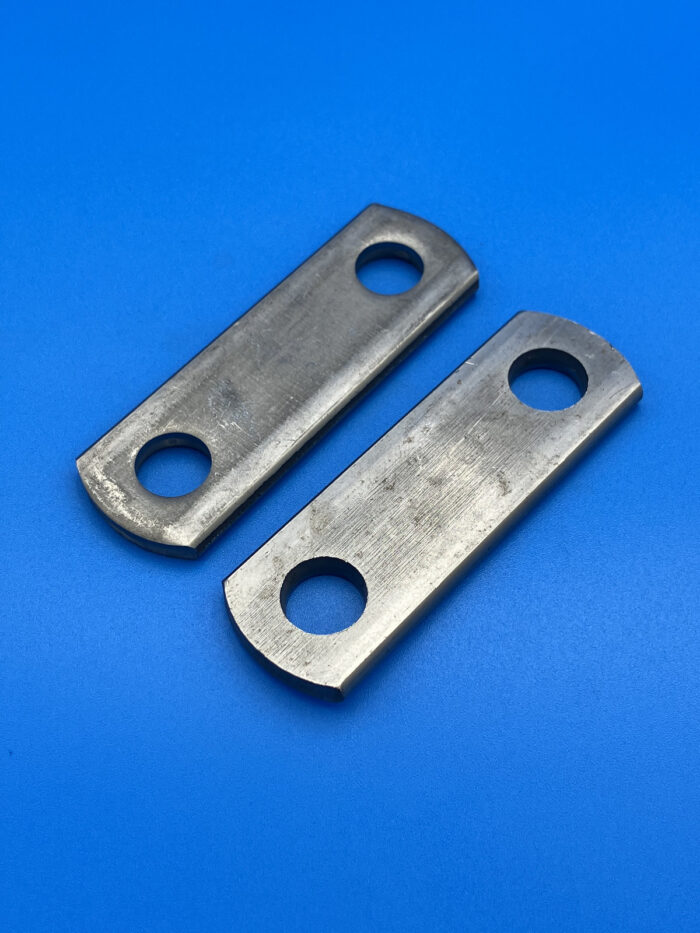

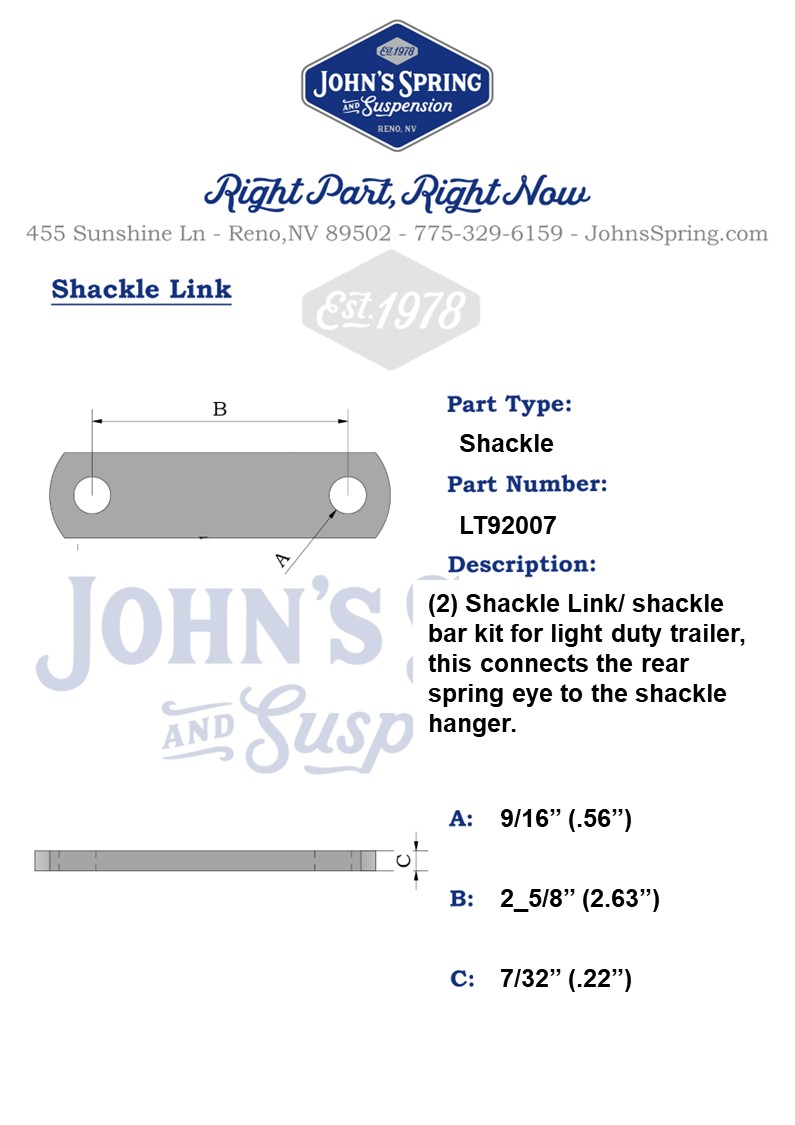

Shackle Link 2.63″ (2_5/8″) Center to Center, .22″ thick, (Pair)
Shackles, also known as “shackle bars”, or “shackle links” bolt to one end of the leaf spring and connect the spring to the hanger bracket on the frame of the trailer or to the equalizer. Shackles allow the spring to contract and rebound during suspension travel. This is particularly true when the trailer moves over bumps, potholes, or uneven terrain. This movement helps absorb shock and maintain weight distribution and tire contact with the ground. These essential components connect the leaf spring’s rear eye to the hanger welded to the trailer frame. On two or three axle trailer configurations, the shackles connect the leaf spring to the equalizer. This allows the leaf springs to flex and move as the trailer navigates over rough terrain. Shackle bars play a crucial role in maintaining proper weight distribution across both single and tandem axle configurations. Commonly used on utility trailers, campers, boat trailers, and light equipment haulers, these steel links are designed to withstand frequent flexing and vibration. Available in various lengths and thicknesses, our trailer shackle links are precision-made to match standard trailer suspension systems and pair perfectly with spring eye bolt. Please note, when upgrading to a thicker shackle, a longer spring bolt will be required. Whether you’re replacing worn-out parts or upgrading your trailer suspension, John’s Spring and Suspension provides high-quality shackles that deliver strength, reliability, and consistent performance for miles to come.
